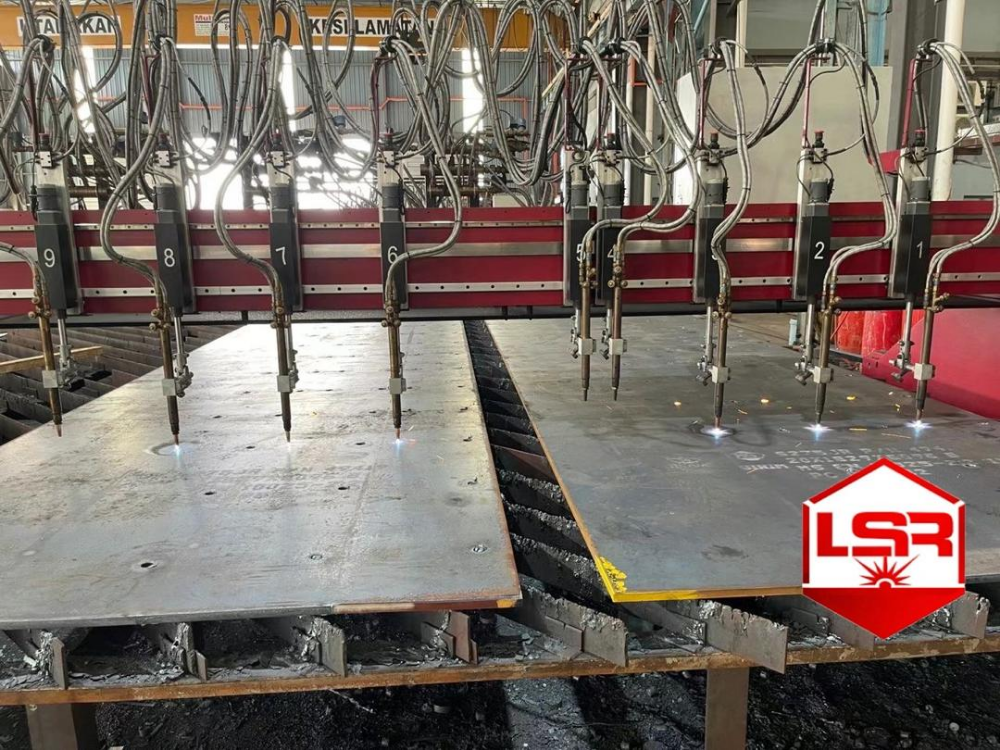

CNC Oxy Fuel Flame Cutting

At LSR STEELMAKERS SDN BHD (LSR), our CNC Oxy-Fuel services are specifically designed to handle large-scale industrial projects in Malaysia that require deep penetration and straight-edge quality.

While laser cutting is ideal for thin precision work, Oxy-Fuel is the undisputed king of thick steel, capable of slicing through materials that other methods cannot touch.

The Science of Precision Flame Cutting

Unlike laser or plasma cutting which melts the metal, Oxy-Fuel cutting utilizes a scientifically controlled exothermic reaction. This process ensures clean, vertical cuts even on the thickest plates.

The process at LSR involves three key stages:

1. Preheating: A precise mixture of fuel gas (propane) and oxygen heats the steel to its "ignition temperature" (approx. 700°C – 900°C).

2. Rapid Oxidation: A high-purity jet of pure oxygen is directed at the heated spot, causing the steel to rapidly oxidize (burn away) in a controlled line.

3. Slag Removal: The high-pressure oxygen stream blows away the molten iron oxide (slag) to create a clean, continuous kerf (cut width).

   Why Choose LSR Oxy-Fuel for Your Project?

   For heavy industry applications, LSR’s Oxy-Fuel technology offers distinct advantages over plasma or laser:

4. Extreme Thickness Capability: While fiber lasers struggle with plates over 25mm, our Oxy-Fuel systems can easily cut carbon steel ranging from 4.5mm up to 300mm+.

5. Unbeatable Economy: It is the most cost-effective solution for cutting thick carbon steel and low-alloy materials, offering a lower cost-per-part than plasma.

6. Multiple Torch Efficiency: LSR utilizes machines with multiple torches, allowing us to cut several identical parts simultaneously. This significantly reduces lead times for large batch orders.

Square Edges: The chemical reaction produces excellent "square" edges (90-degree vertical cuts) on thick plates, reducing the need for secondary machining.

Ideal Applications for Oxy-Fuel Cutting

This robust process is the industry standard for:

1. Heavy Structural Engineering: Base plates, gussets, and connection flanges.
2. Shipbuilding & Marine: Thick hull plates and structural ribs
3. Counterweights for cranes, excavators, and earthmoving equipmentYellow Goods & Machinery:
4.  Pressure Vessels: Shell plates and dished ends for boiler manufacturing.
